Floor Length – 28′       Full Featured Dry Weight – 9220

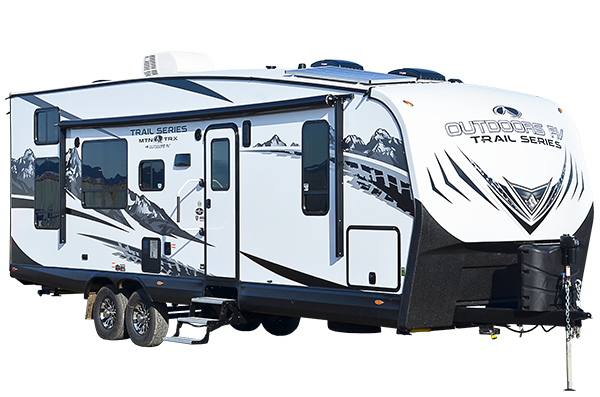

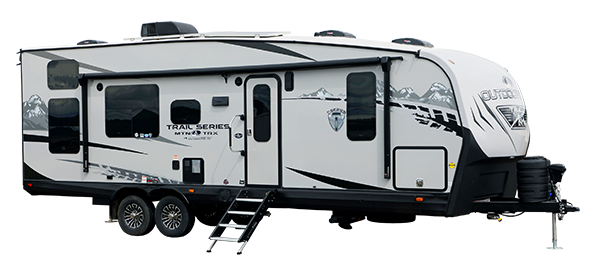

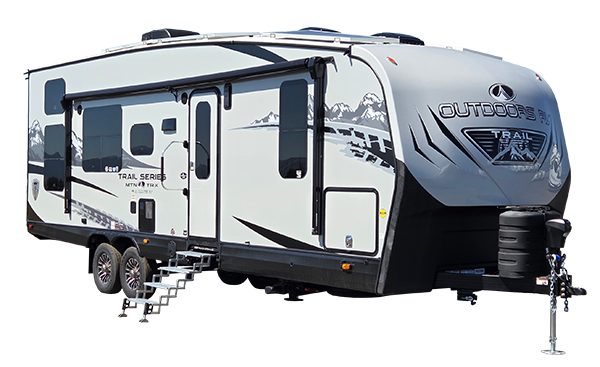

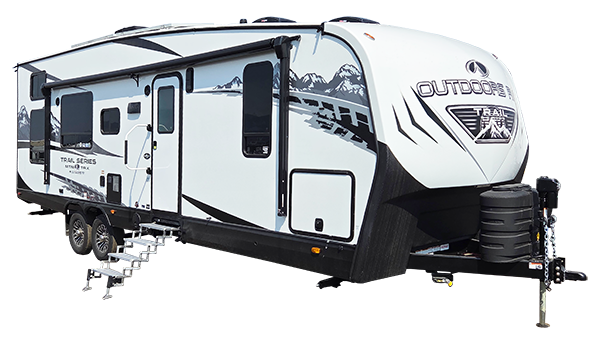

27TRX

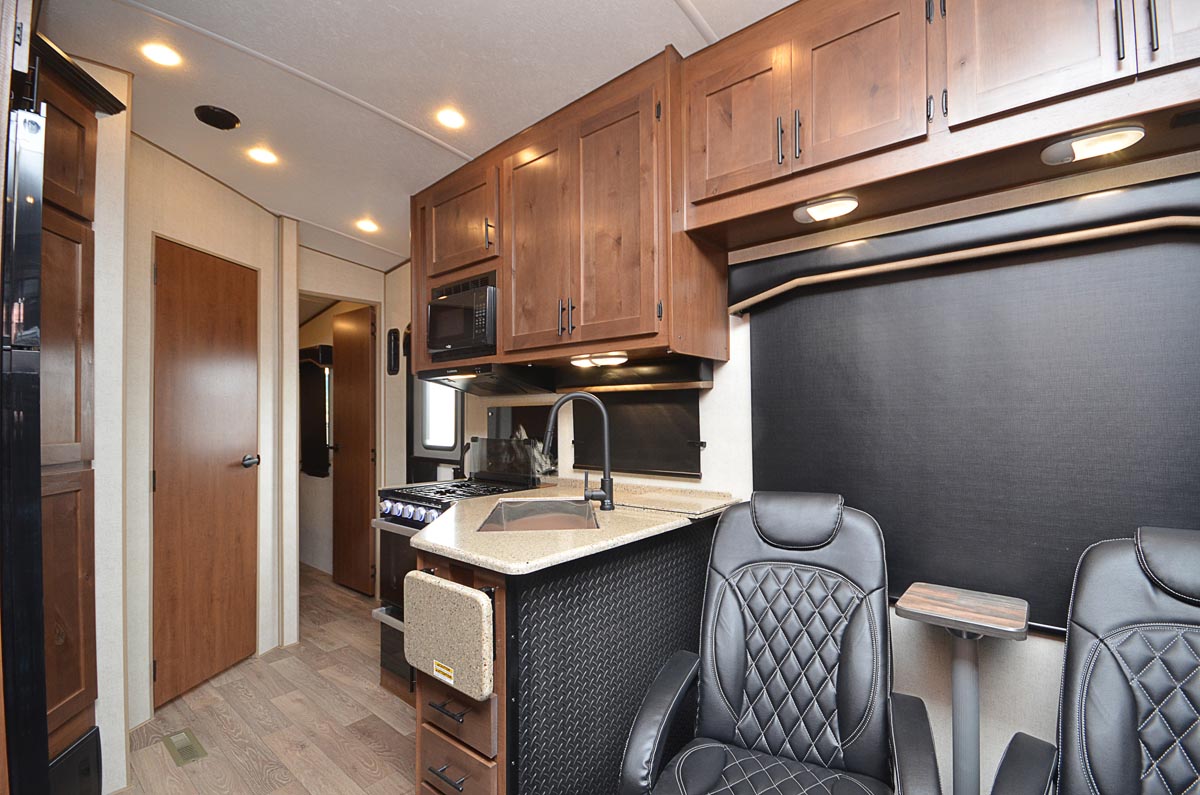

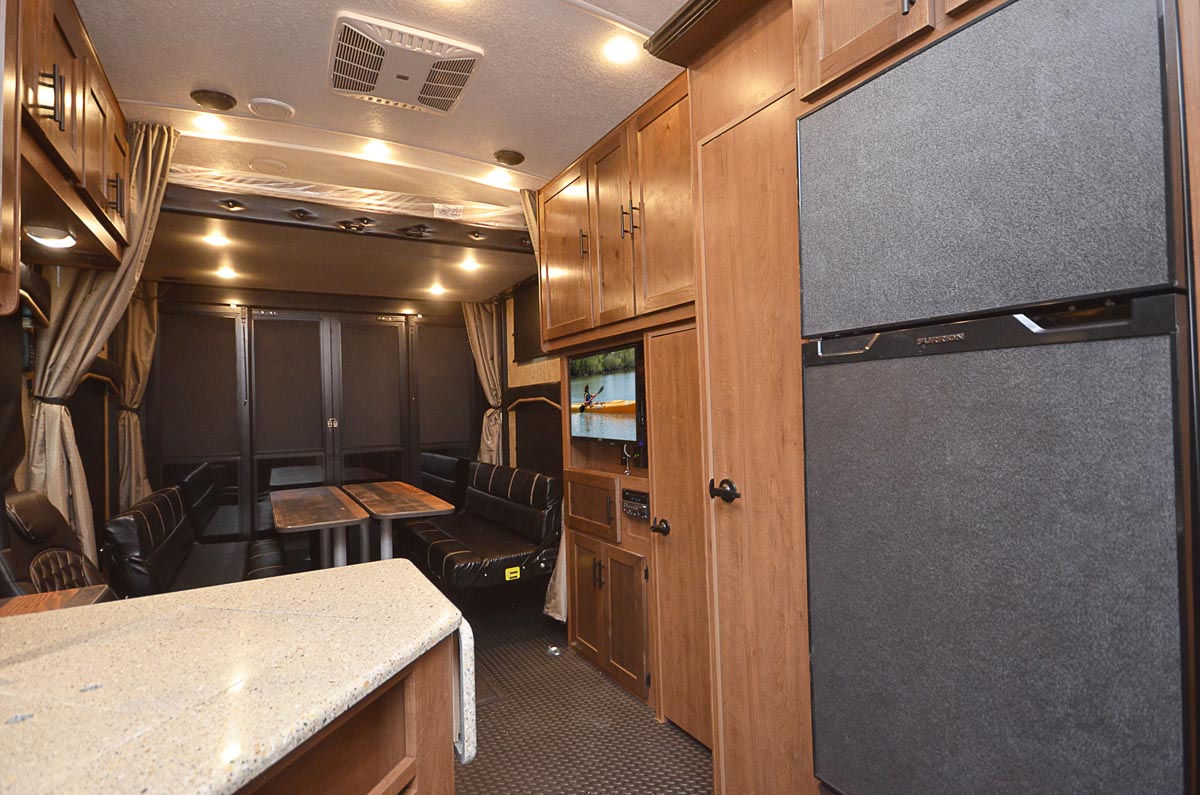

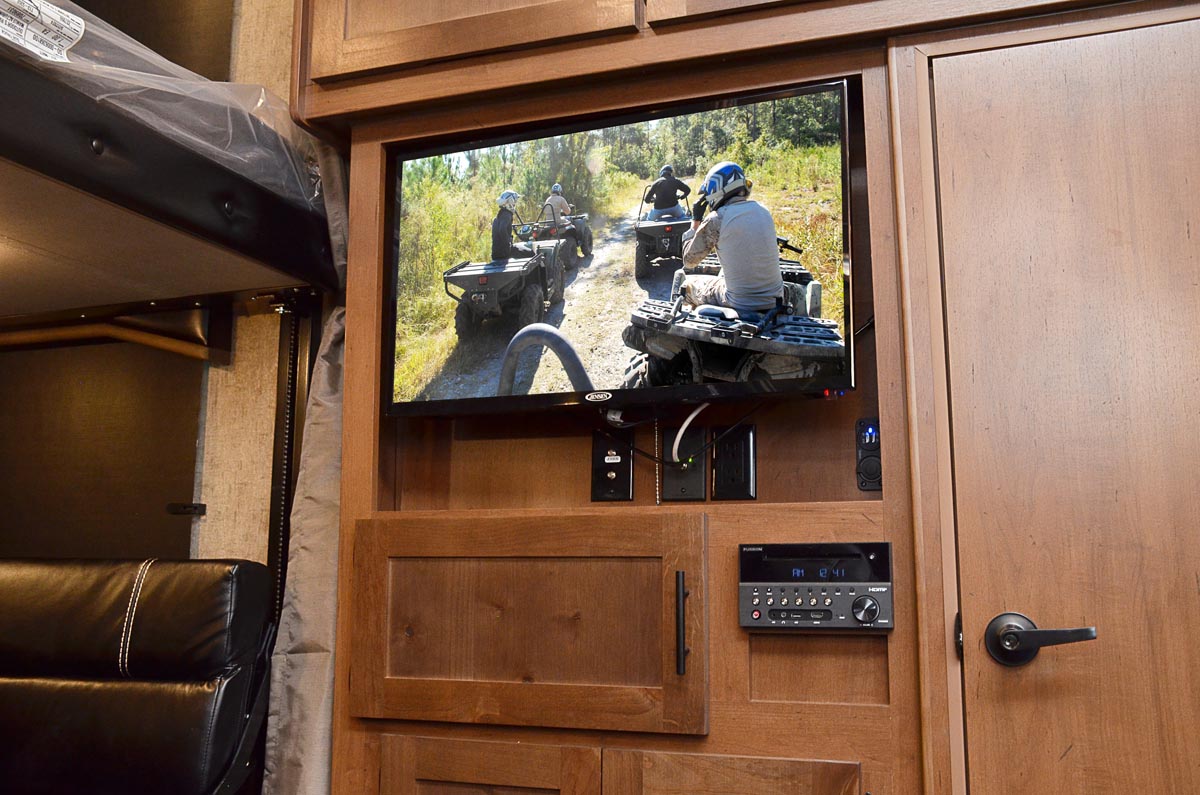

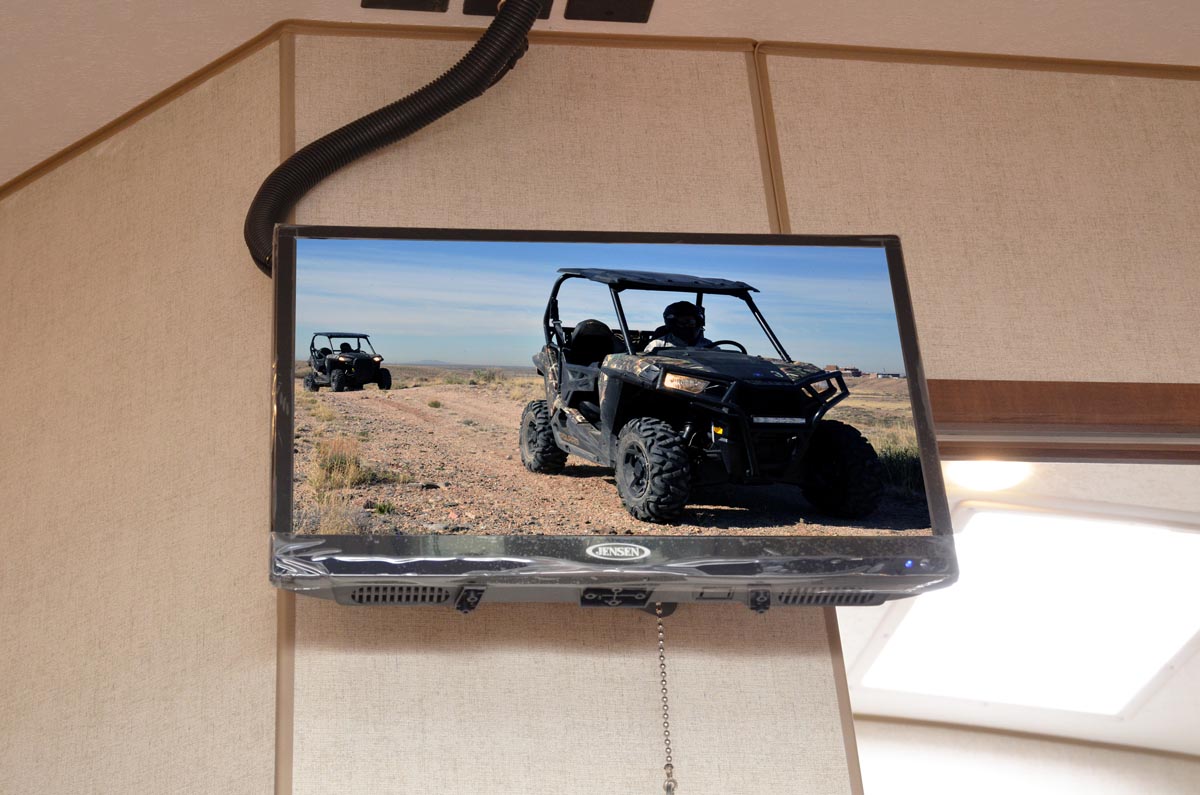

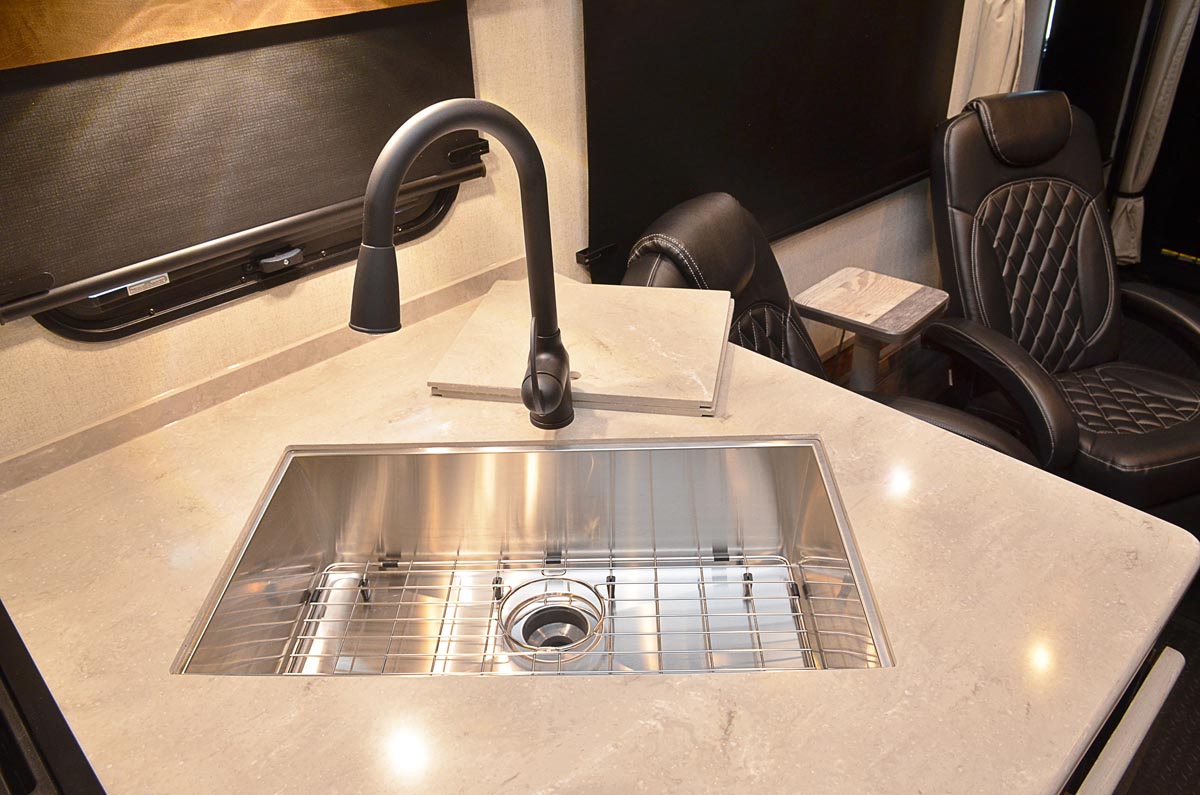

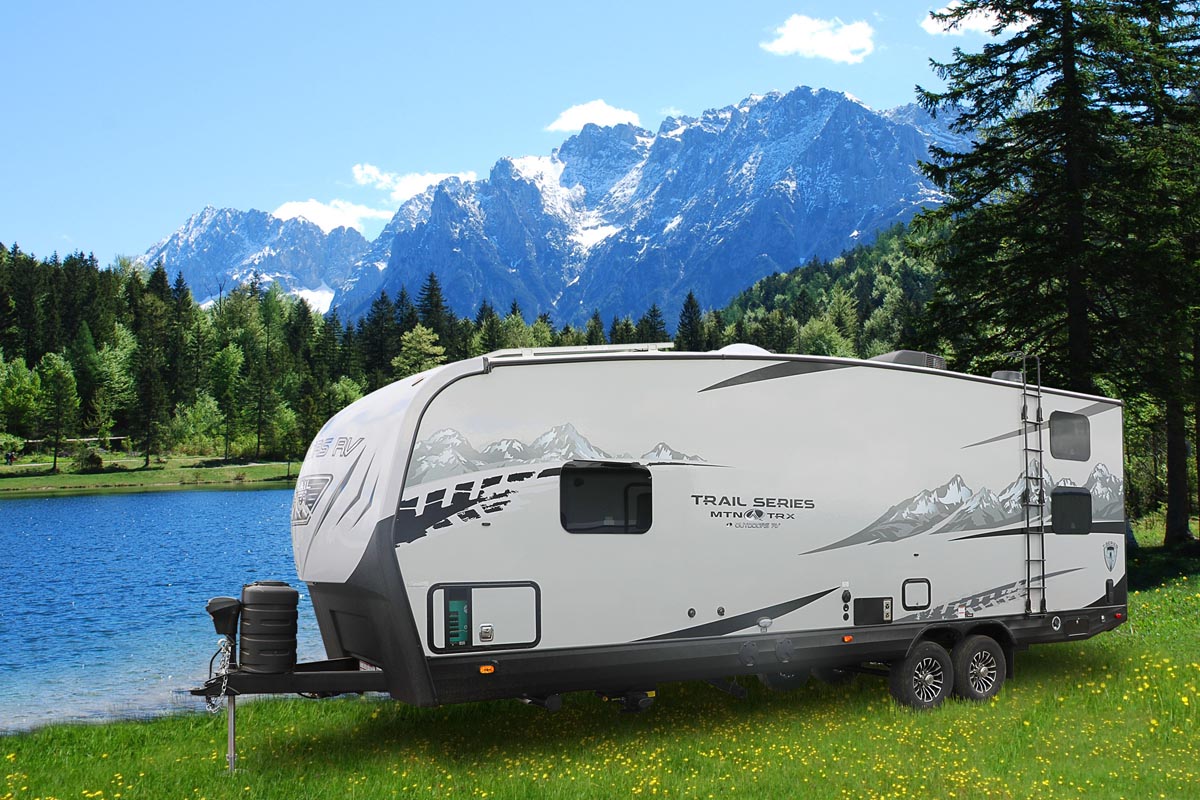

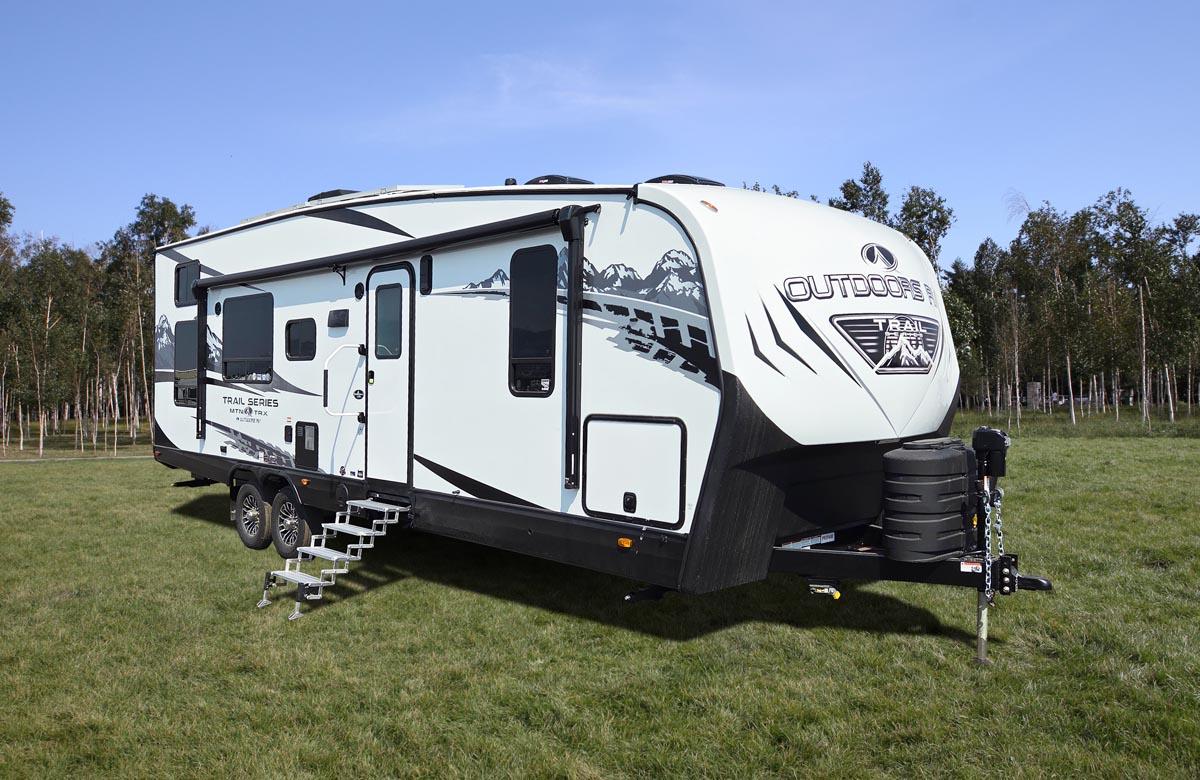

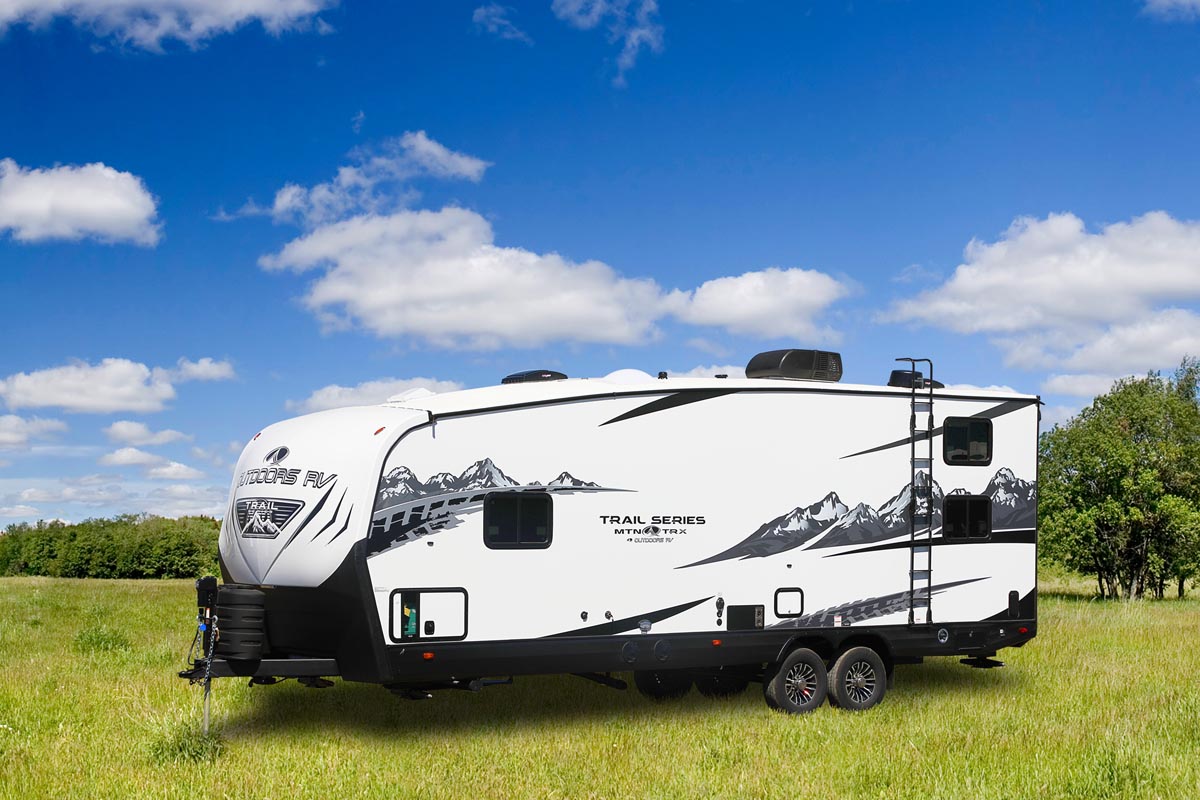

27TRX GALLERY

*Photos shown may feature optional equipment, standard features subject to change without notice

Specifications

Full Feature Dry Weight - Lbs. 9220
Exterior Length (approx. hitch to back of ladder) 33'2"
Fuel Station Capacity (Gallons) 40
Fresh Water Capacity (approx. gal) 100
Water Heater Capacity (approx. gal) 10
Good Year Tire Size LT235/85/16G
Load Range G
Heavy Duty 6 Lug Axles (lbs) 6800(2)

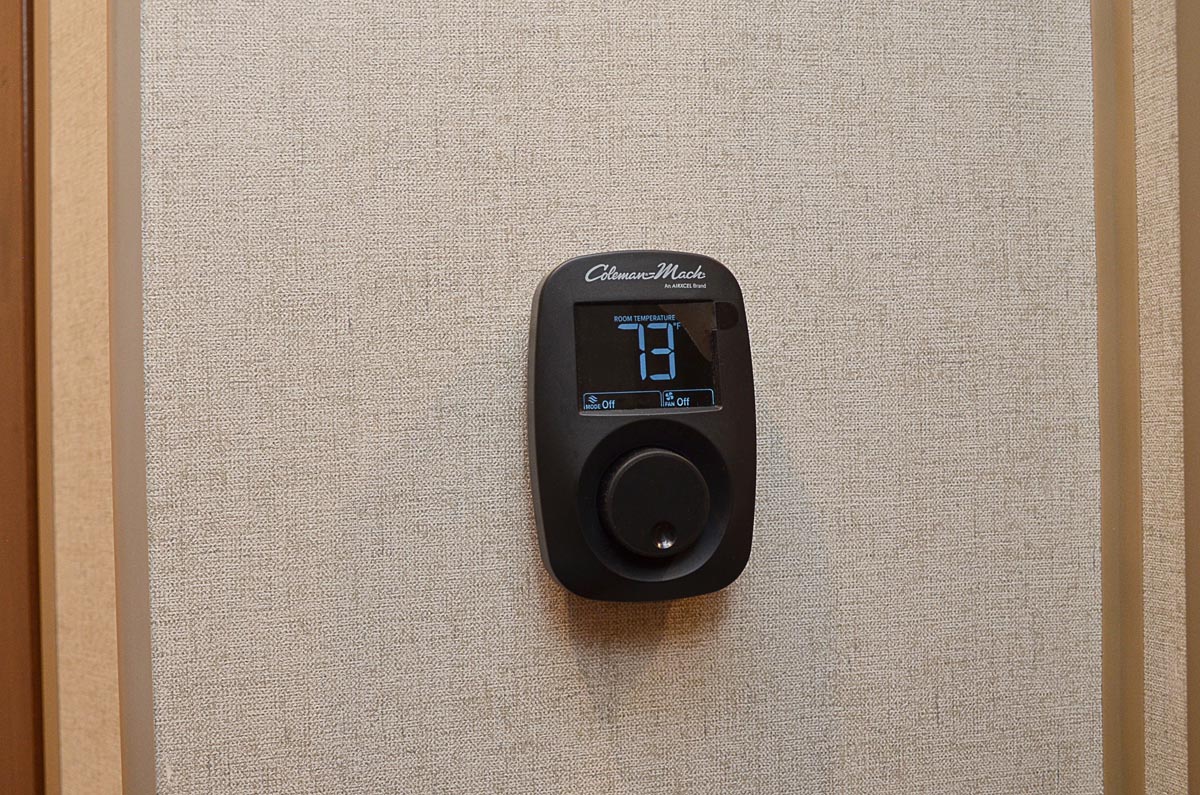

Climate Designed Furnace 35K
Exterior Height 13'1" w/AC
Interior Height TBD
LPG Capacity (approx. pounds) 60
Grey Water Tank (approx. gallons) 65
Black Water Tank (approx. gallons) 40
Net Carrying Capacity 4775
Dry Hitch Weight (approx. Lbs.) 1425
Maximum Trailer Weight - Lbs. 13995

Standard Features

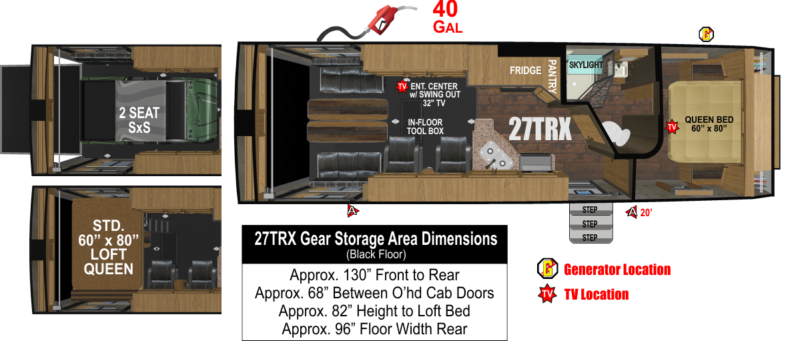

* Designed to hold most 2 seat Side by Sides

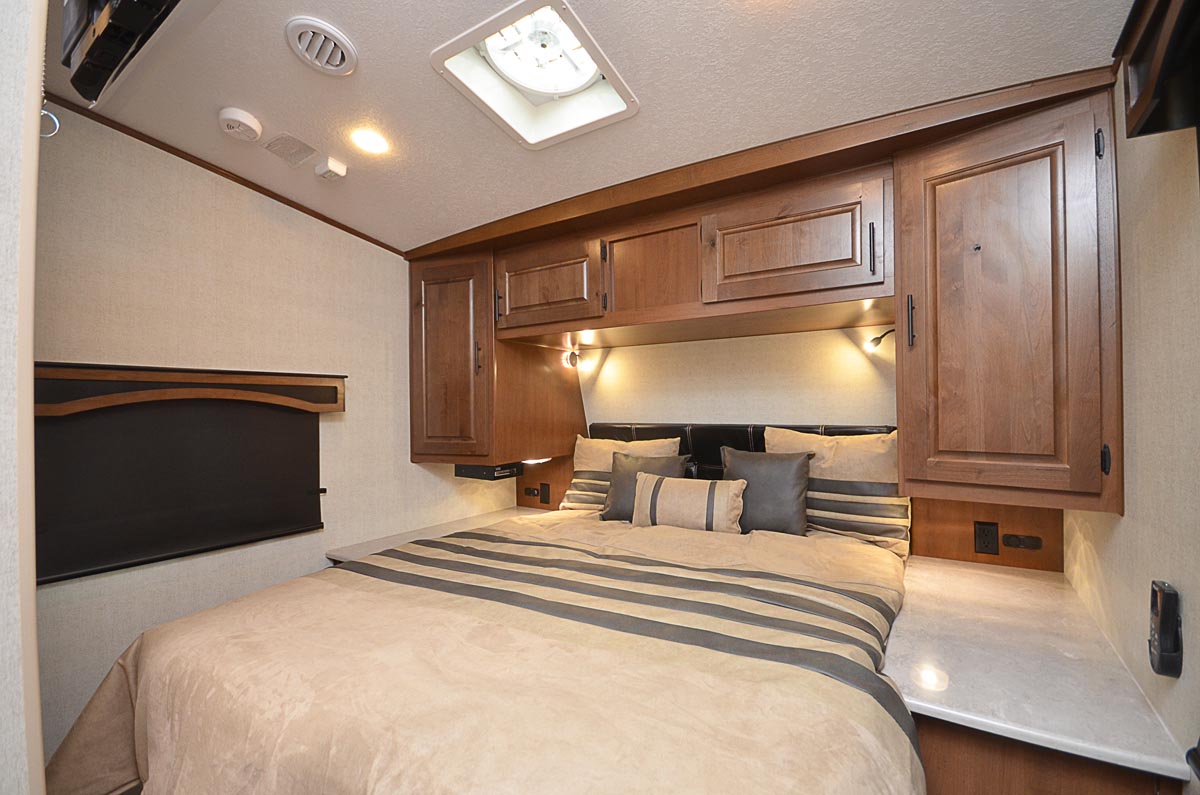

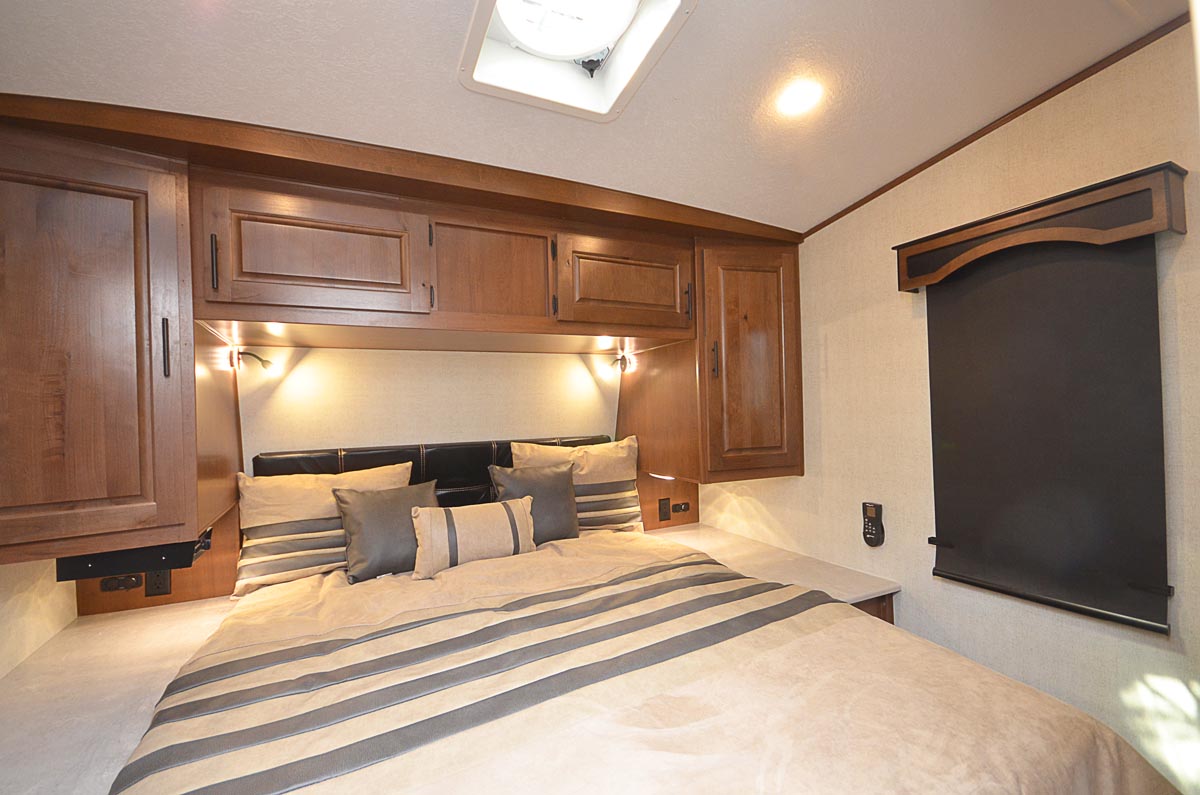

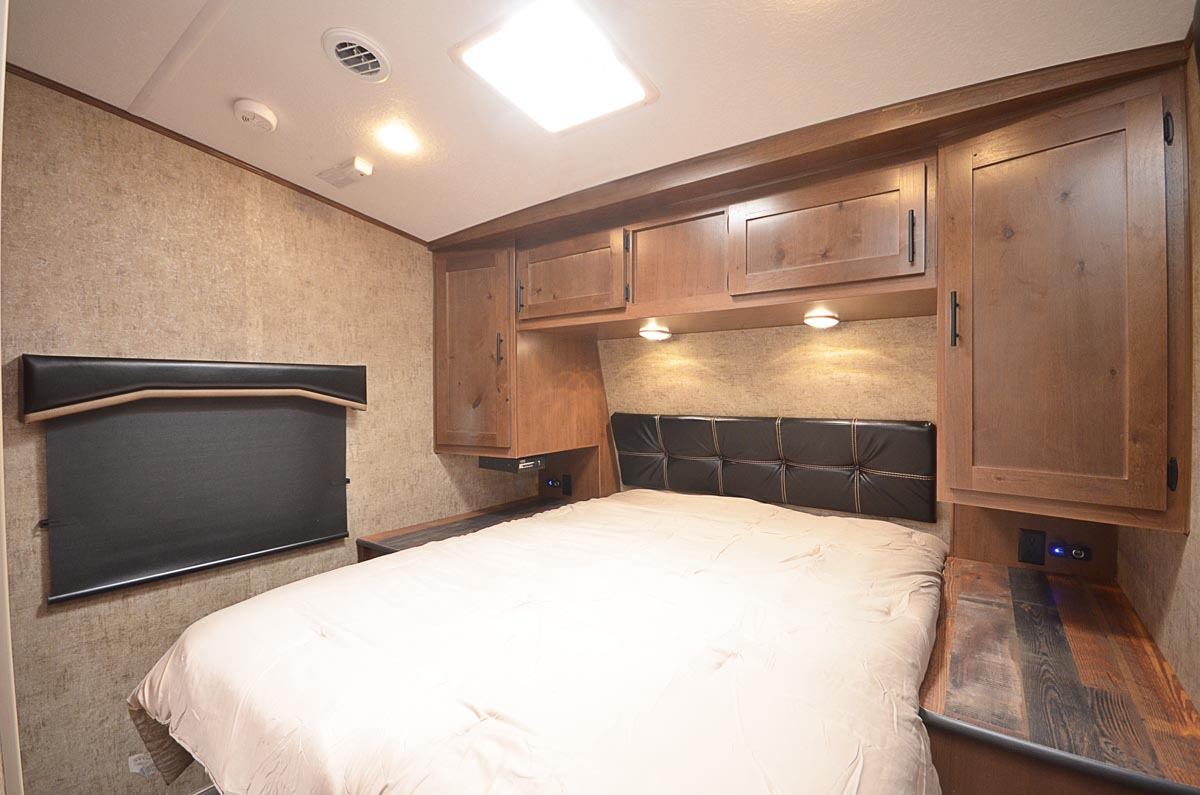

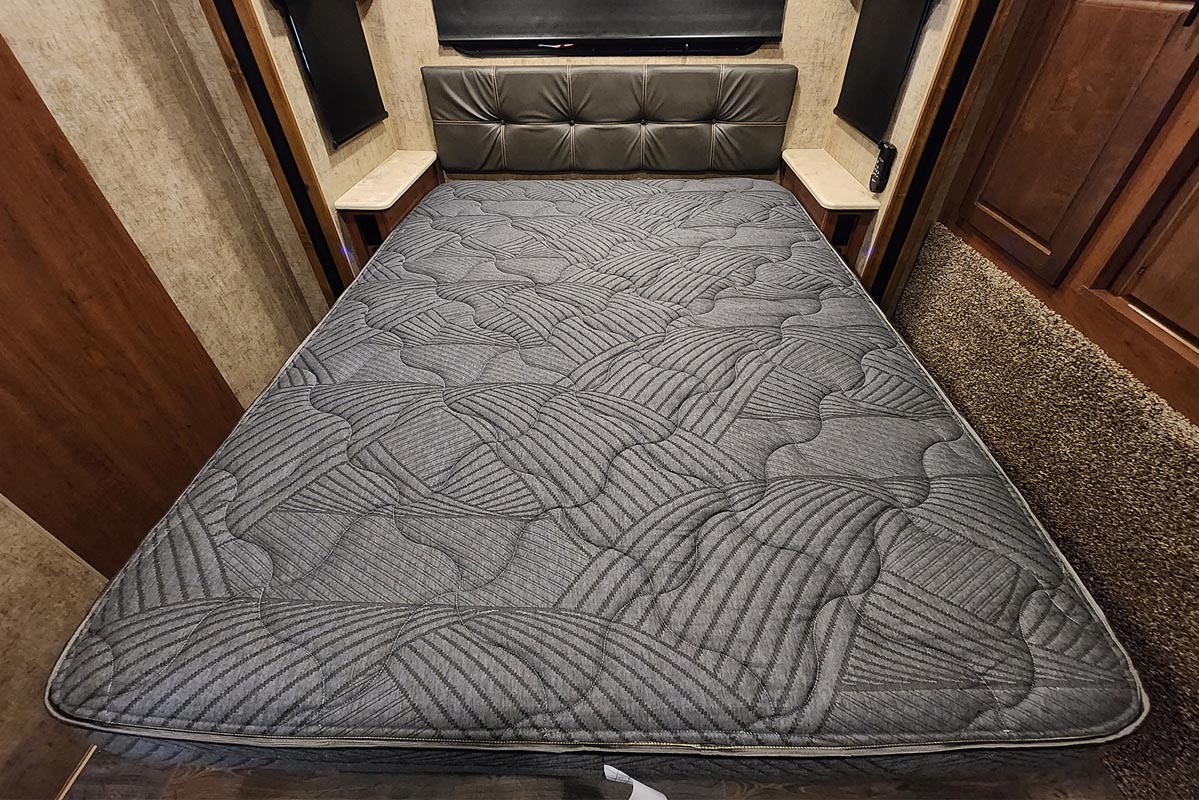

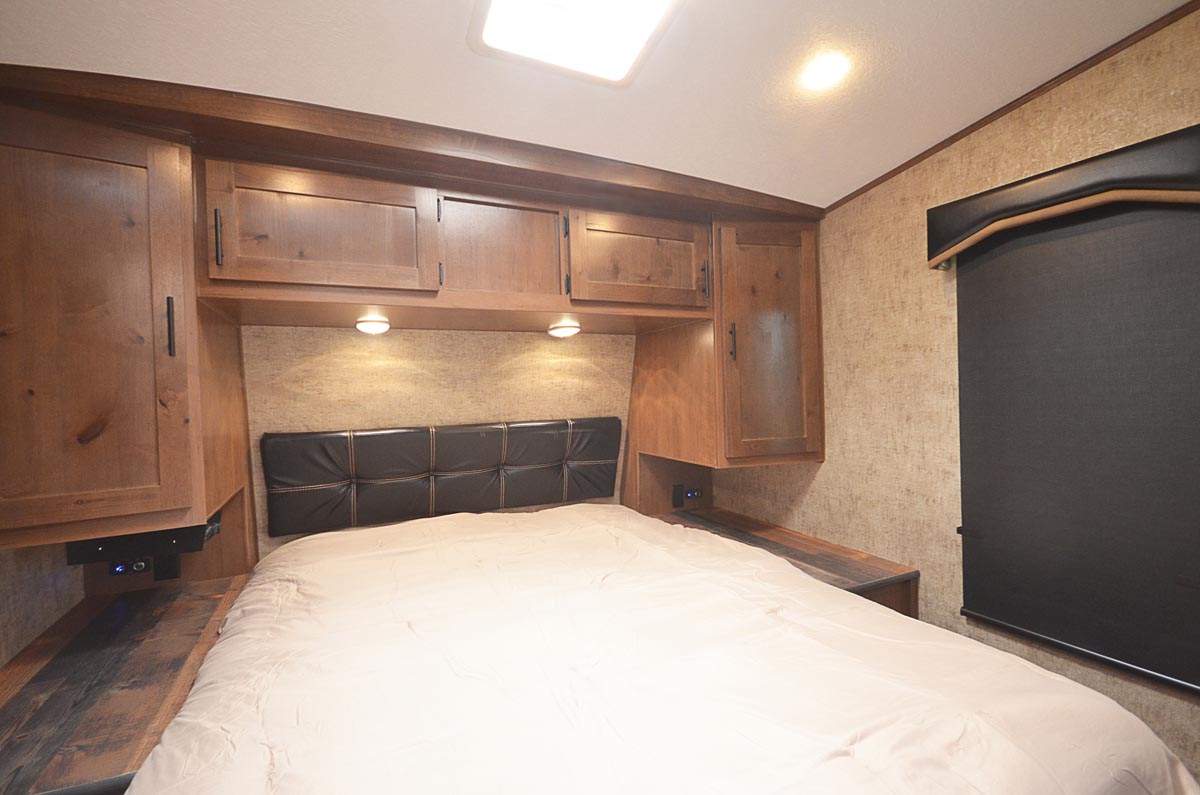

* Front 60×80 walk around Queen Bed
*Mountain Extreme Thermal Pane Windows
*Climate Designed – Four Seasons Camping
– Designed for Mountain States & Western Canada
*Triple Layered Four Seasons Roof Insulation
(Reflective Insulation Layer & Two Layers of R-7 Fiberglass Insulation)
*Fully Enclosed-Heated-Insulated Underbelly
*1″ Thick Thermal Insulated Luggage Doors
*Reflective Insulation Layer Roof, Entire Underbelly, Holding Tanks
*Custom-Built Cambered Off-Road Chassis
*Integrated A-Frame Chassis Construction
*Off Road X4 Suspension – MorRyde CRE 3000, HD Shackle Kit
*KYB World Class Shock Absorbers
*Heavy Duty 8 Lug 6800 LB Axles w/ Off-Road Brake System
*16″ GoodYear Endurance 235 G Range 14 Ply Radial Tires
*Roto-Torqued “Outdoors Tough” Cabinetry (All Cabinets)
*Radius-Crowned Full Walk-On Roof w/ Side Ladder
*Exterior Grade Tongue & Groove Plywood Sub-Floor
*Marine Grade Plywood Roof Decking
*Cummins Onan 4K On-Board Gas Generator w/ 40 Gallon Fuel Station

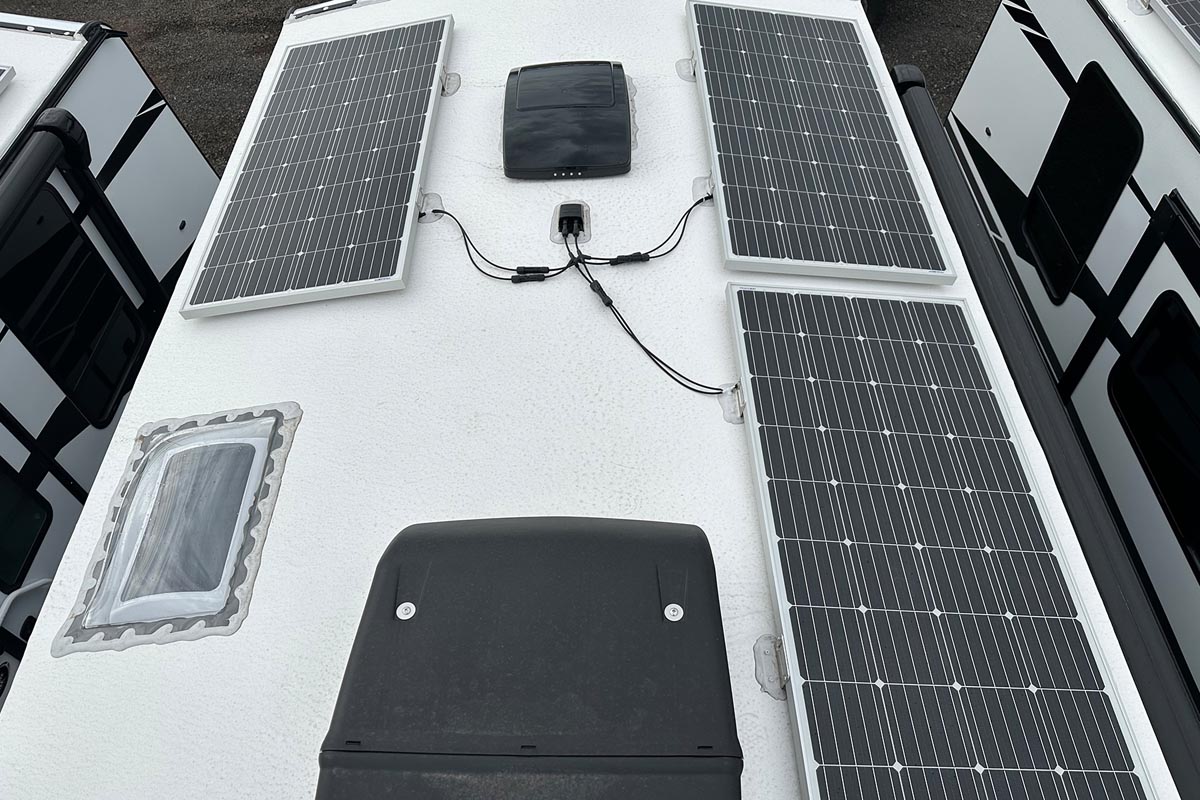

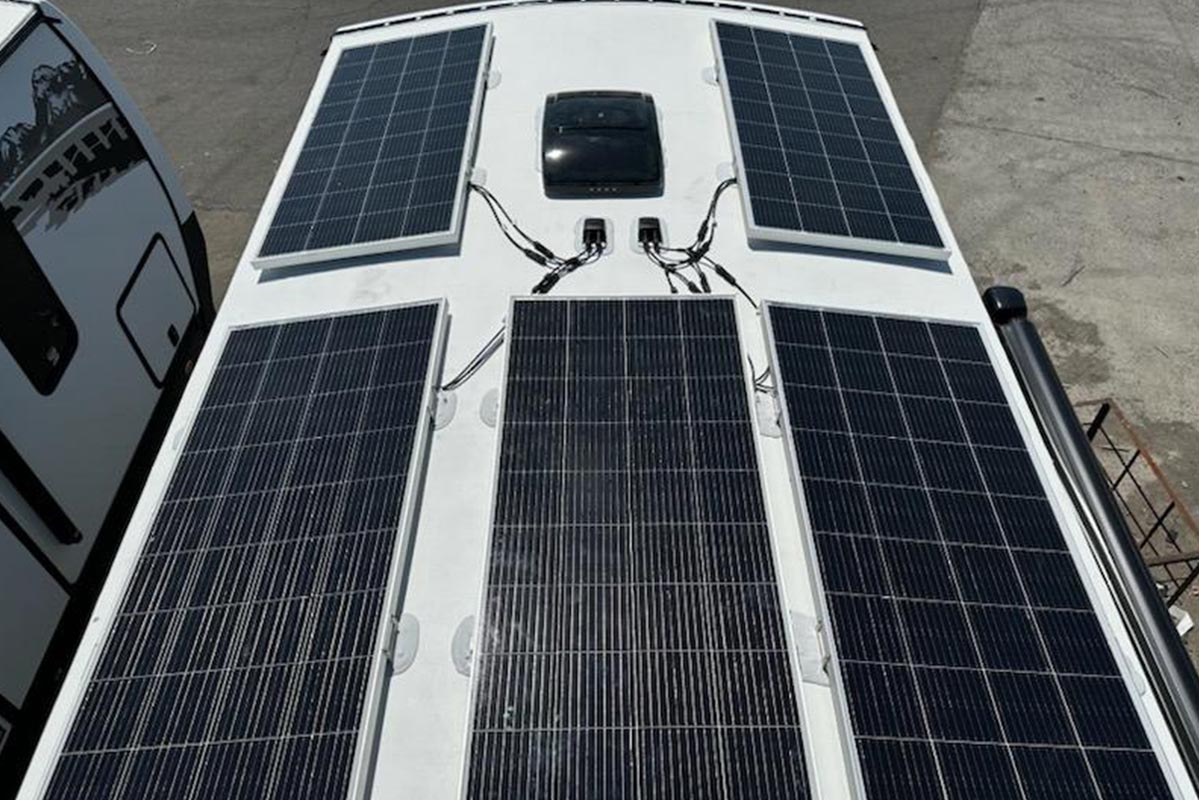

*No Boundaries Off-Grid 170 Watt Solar Panel w/ 30 Amp 5 Stage Controller
*Progressive Dynamics (4) Stage Converter w/ Built In Charge Wizard – Lithium Compatible
*100 Gallon Fresh Water Capacity
*Rugged 2″ Bonded Aluminum Frame Walls (Every Wall)
*HD Fiberglass Front Cap w/ Armor Guard Protection
*HD Laminated Fiberglass Hardwall – Front, Rear & Sidewalls
*Trekk “Outdoors Tough” Flooring – 3 Year Cold Cracking Warranty to -50

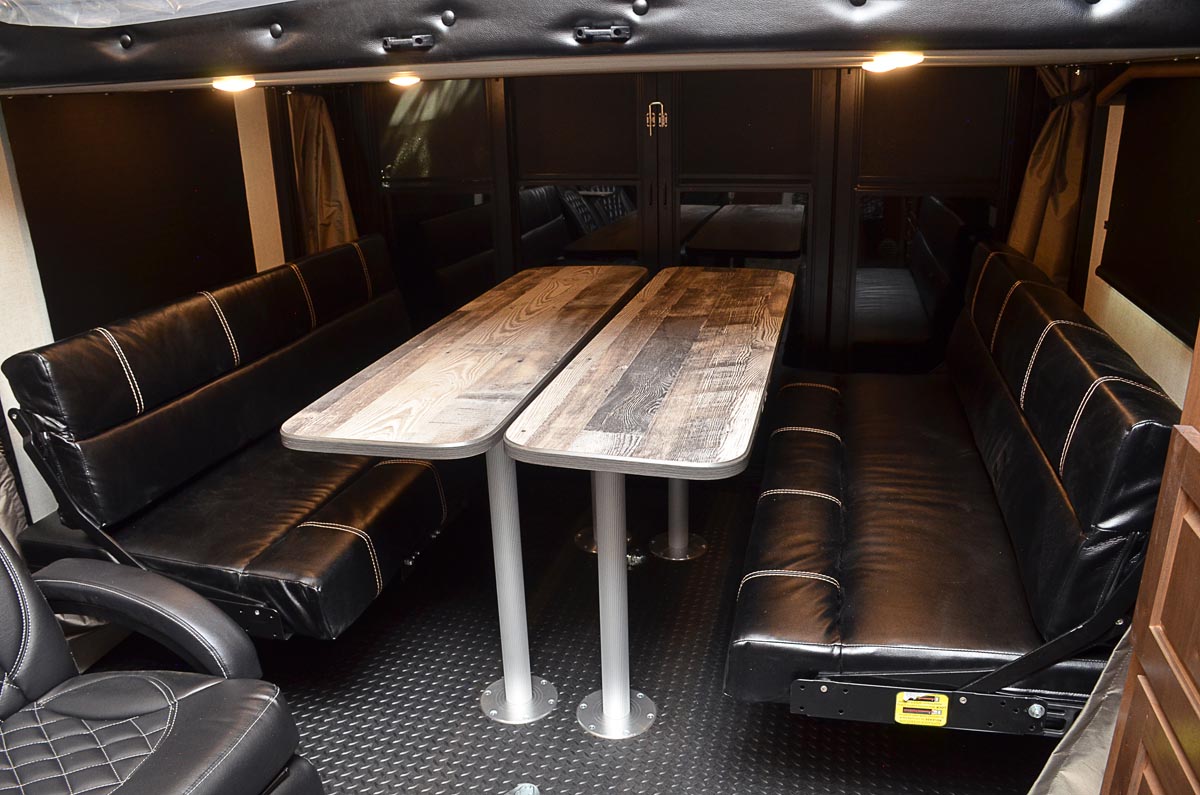

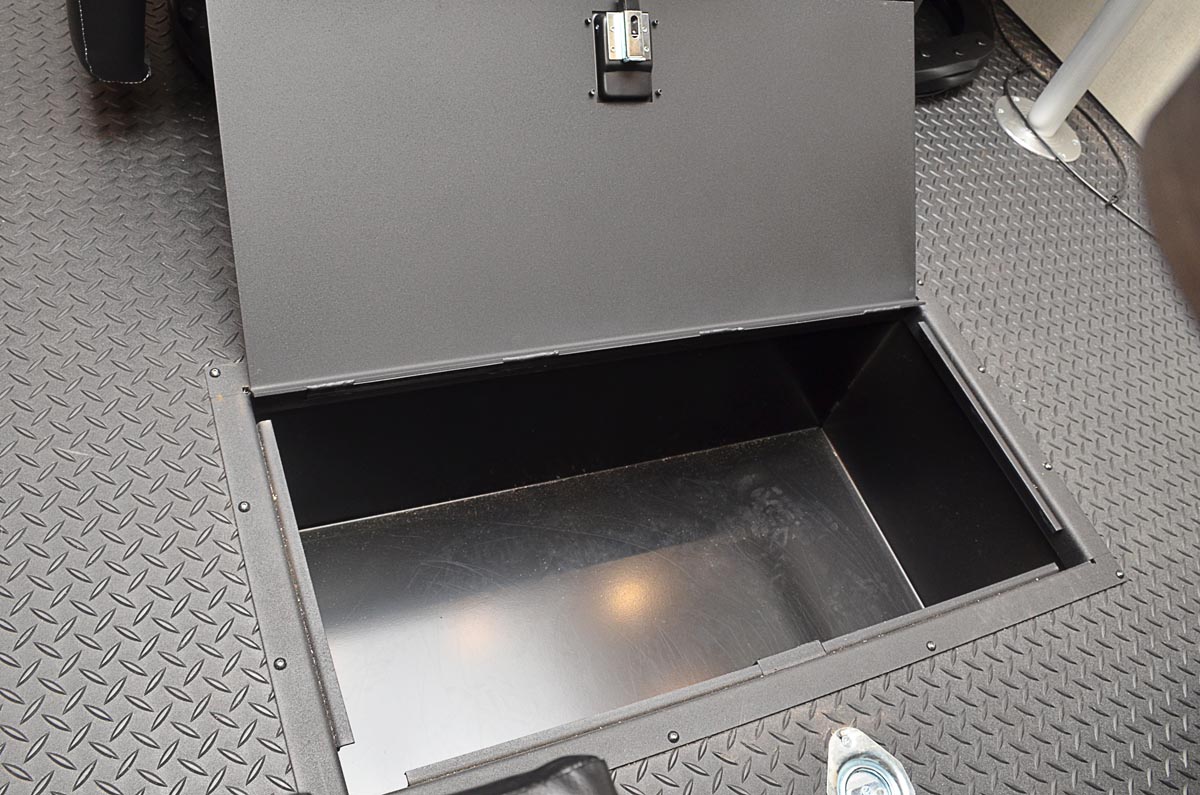

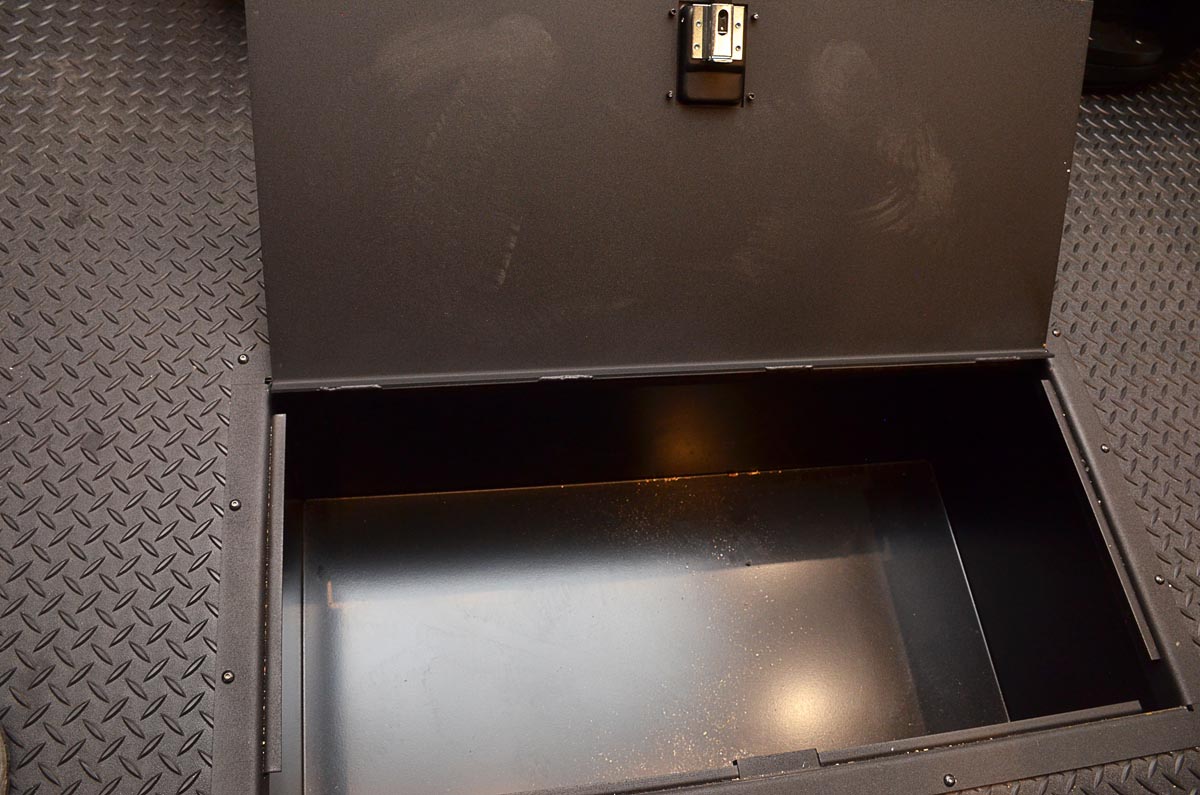

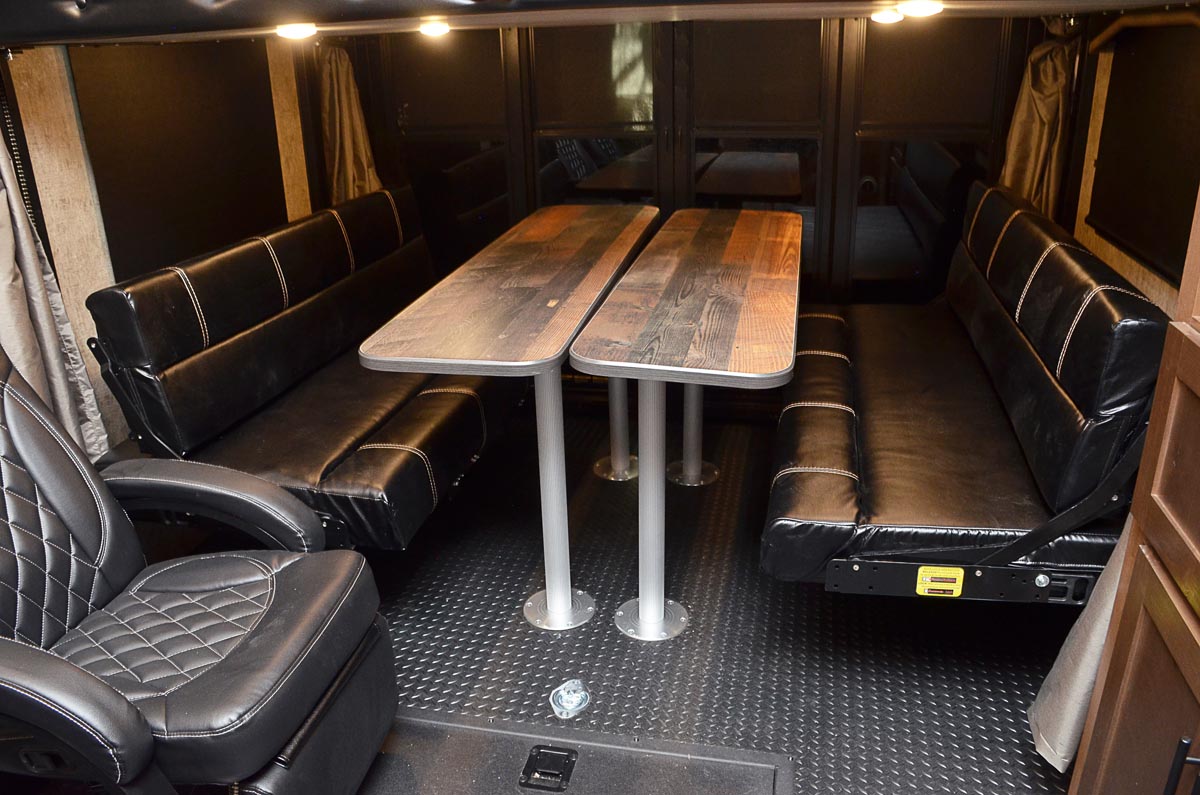

*Rugged Rubber Diamond Plate Flooring – Gear Storage Area
*LCI “Fast Ramp” w/ No Exterior Lower Hinges and Dual Locks
*Rear Ramp Non-Slip Grip Surface (3000 LB Ramp Down Load Rating)
*Patio Railing Kit w/ Entry Step and Rear Awning

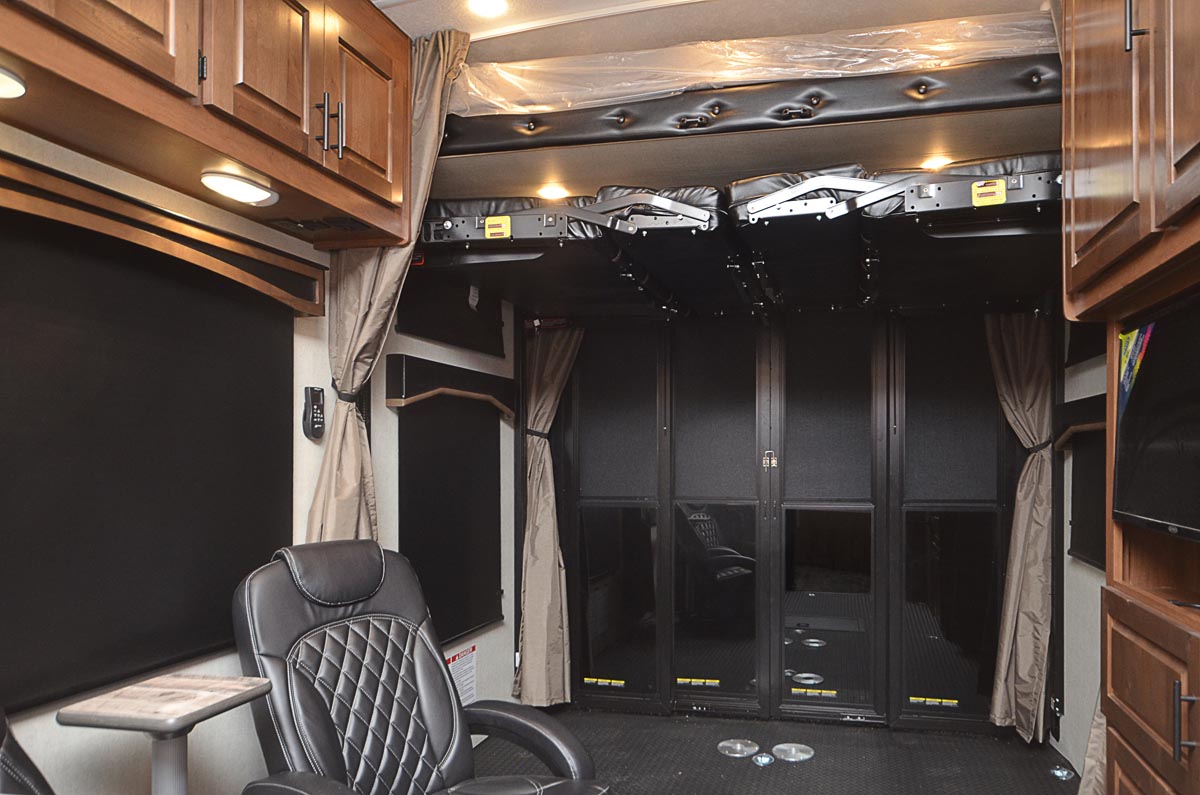

*Sliding Rear Patio Doors (Tinted w/ Slider Windows for Ventilation)

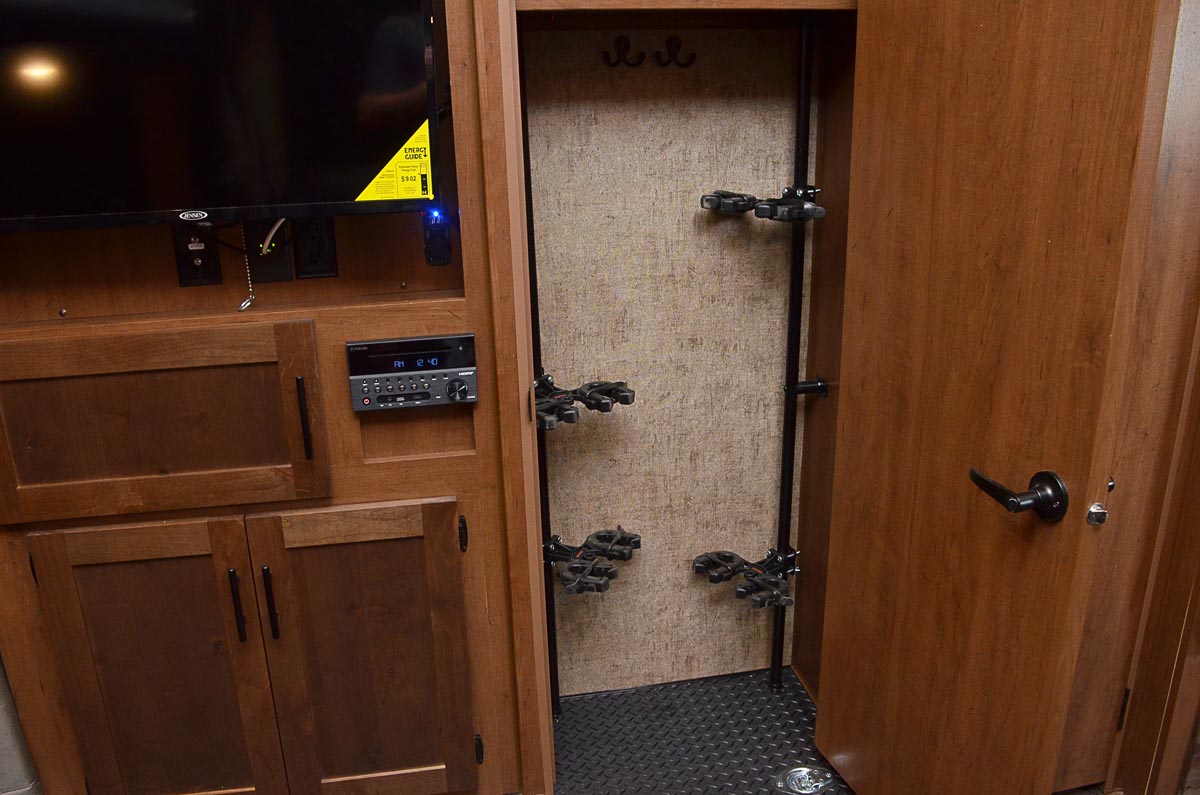

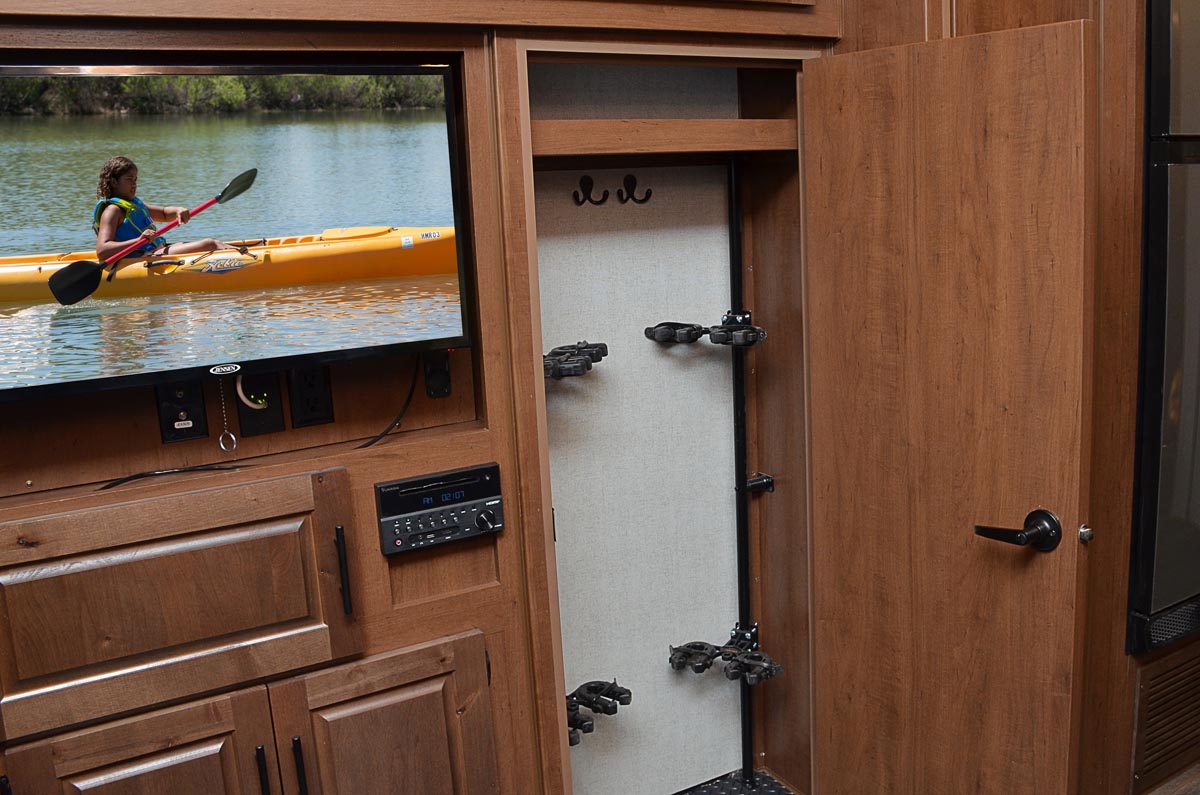

*Sportsmen’s Gear Closet w/ Locking Door

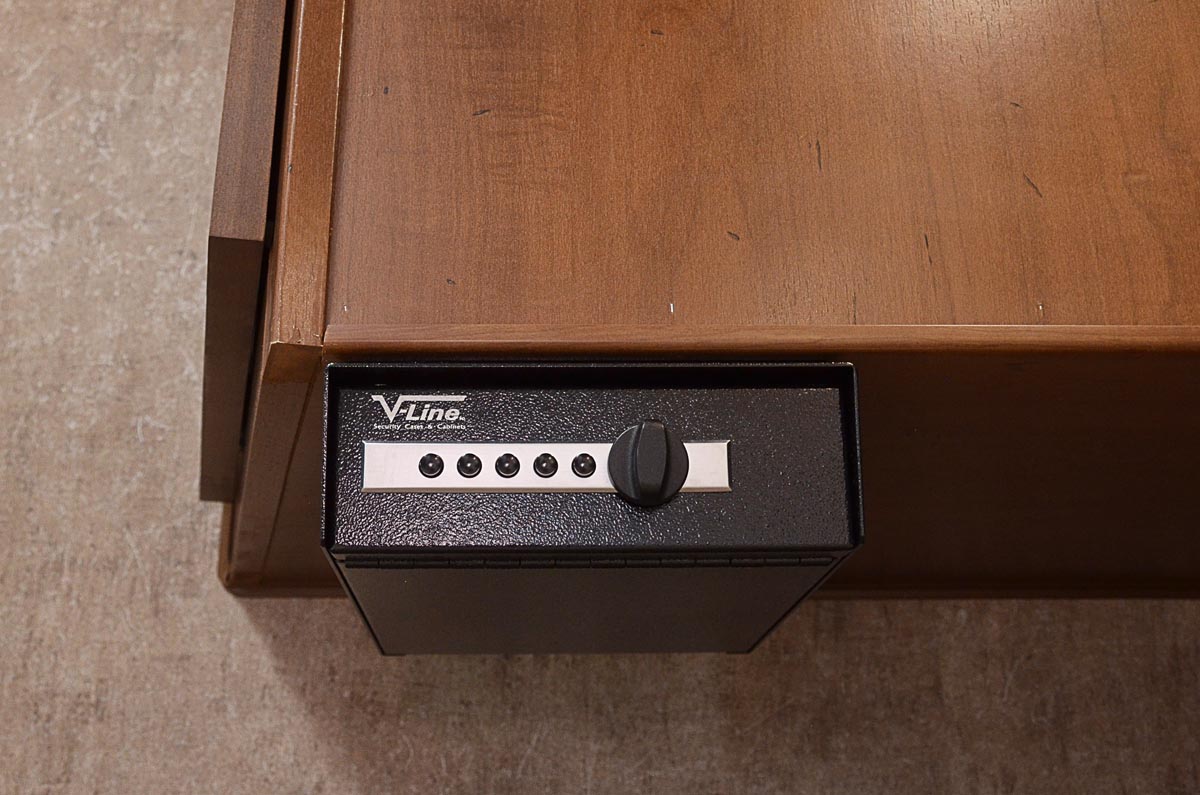

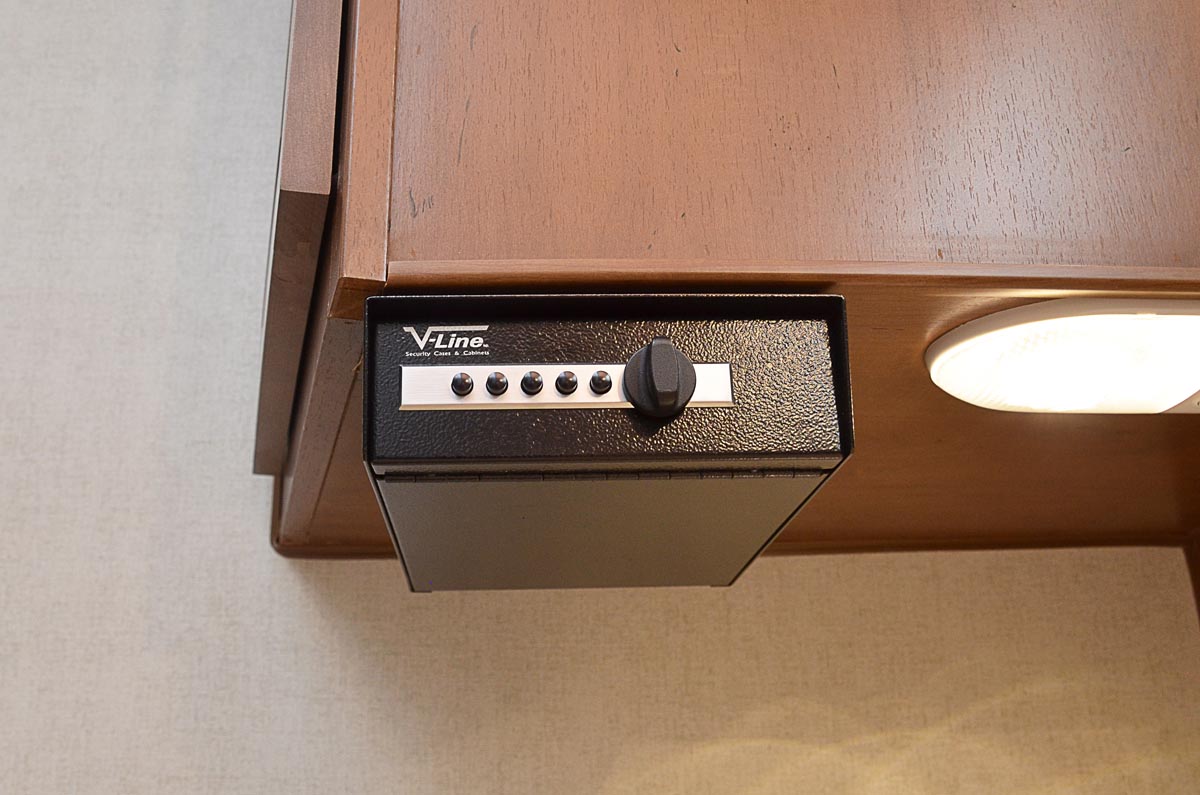

*Quick Access Home Defense Bed Safe
*Toy-Lok (15 FT Cable for Locking Bikes, Coolers, Etc)
*High Pressure Exterior Spray Washer
*Air Compressor (Gauge, 2.5 Gallon Tank / up to 150 PSI)
*MorRyde Sliding Cargo Tray in Front Compartment
*Sportsmen’s Rack (Axe, Shovel, Fishing Poles, etc)

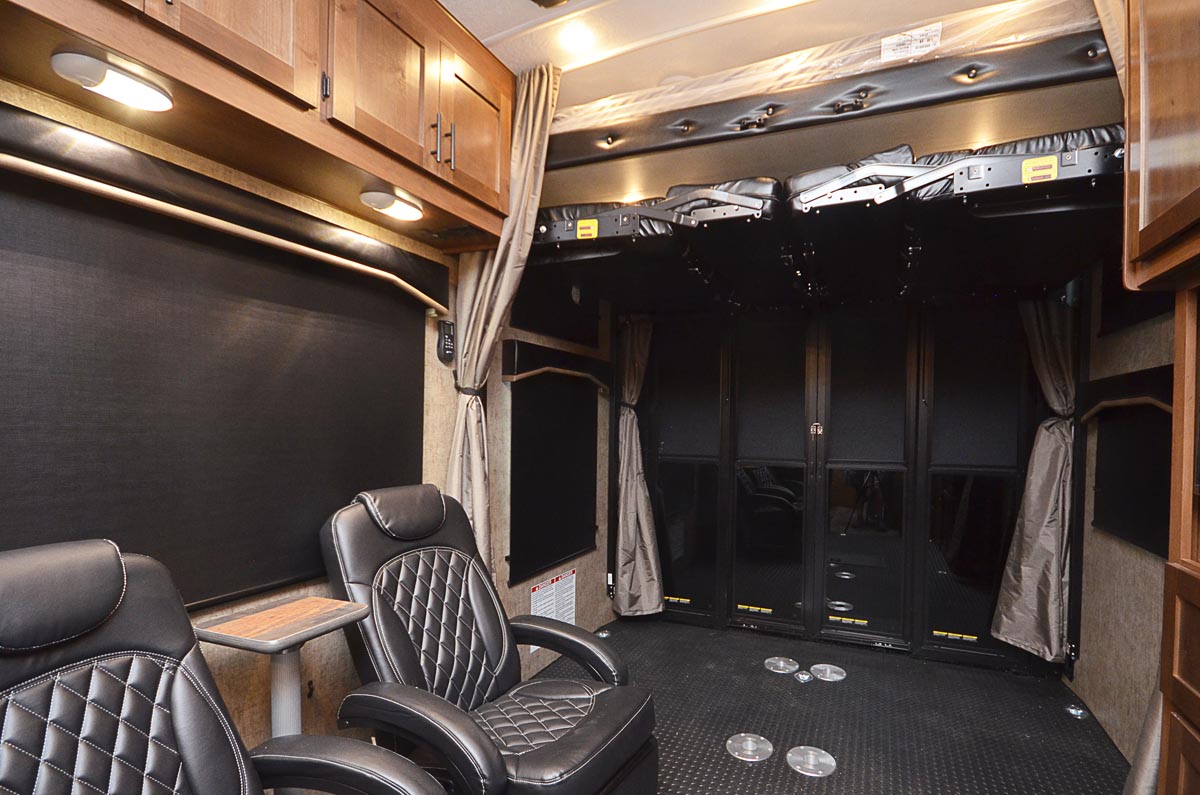

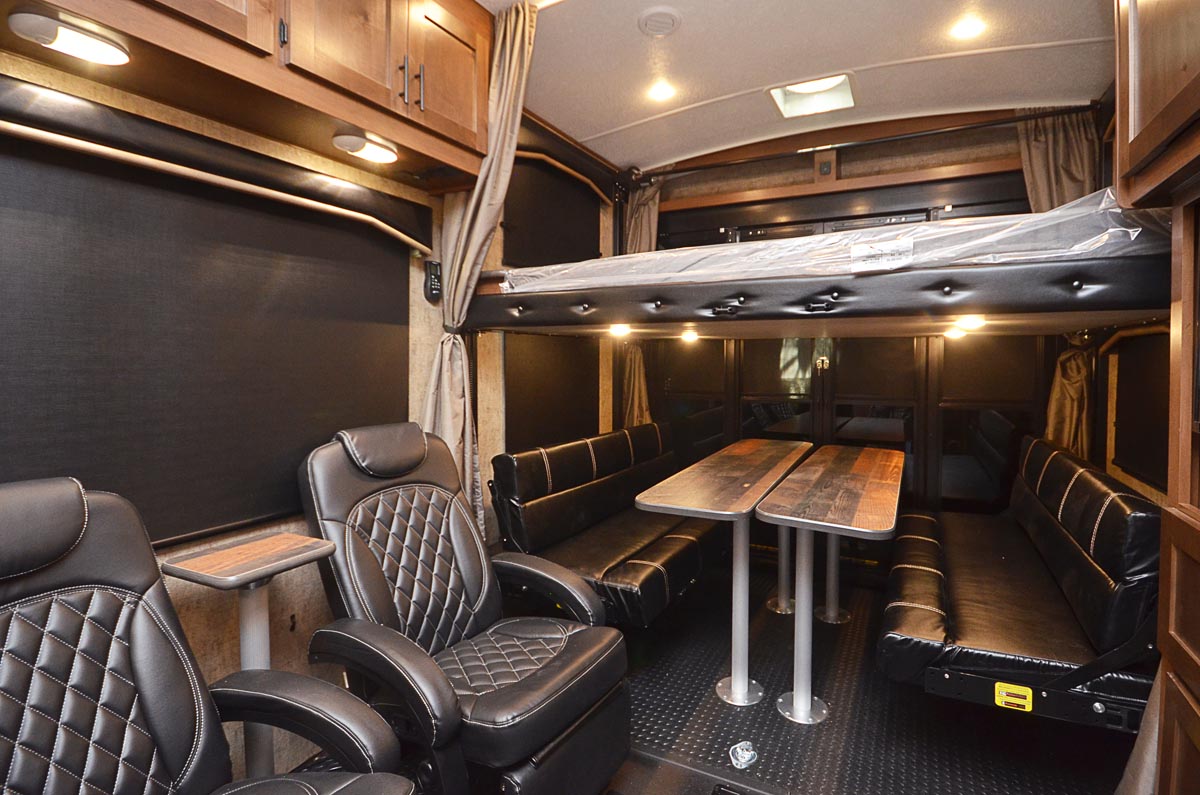

*Auto Brackets for Rear Bed Lift System
