Floor Length – 22′ Full Featured Dry Weight – 6745

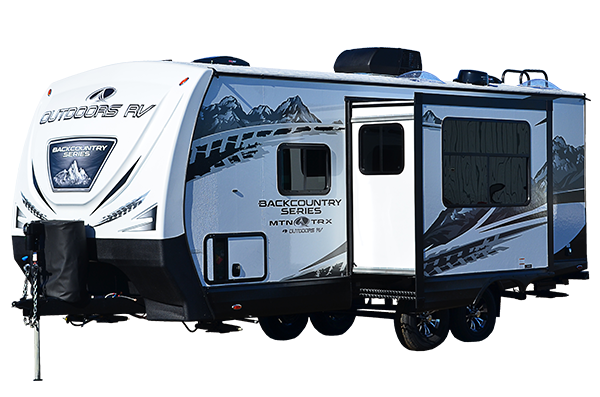

21RWS GALLERY

*Photos shown may feature optional equipment, standard features subject to change without notice

Specifications

Full Feature Dry Weight - Lbs.	6745
Exterior Length (approx. hitch to back of bumper)	26'3"
Fresh Water Capacity (approx. gal)	100
Water Heater Capacity (approx. gal)	10
Good Year Tire Size	ST235/80/16E
Load Range	E
Heavy Duty 5 Lug Axles (lbs)	5200(2)
Climate Designed Furnace	35K
Exterior Height	11'7" w/AC
Interior Height	6'11"
LPG Capacity (approx. pounds)	80
Grey Water Tank (approx. gallons)	50
Black Water Tank (approx. gallons)	40
Net Carrying Capacity	3250
Dry Hitch Weight (approx. Lbs.)	899
Maximum Trailer Weight - Lbs.	9995

Standard Features

*Mountain Extreme Thermal Pane Windows
*Climate Designed – Four Seasons Camping
– Designed for Mountain States & Western Canada
*Triple Layered Four Seasons Roof Insulation
(Reflective Insulation Layer & Two Layers of R-7 Fiberglass Insulation)
*Fully Enclosed-Heated-Insulated Underbelly
*1″ Thick Thermal Insulated Luggage Doors
*Reflective Insulation Layer Roof, Slide-Out Floor, Entire Underbelly, Holding Tanks
*XL Furnace for Extreme Camping Heat System
*Exterior Shower Protected by 1″ Thick Thermal Insulated Door
*Custom-Built Cambered Off-Road HD 8″ Chassis (All Models)
*Underslung Off Road Hitch
*Integrated A-Frame Chassis Construction
*Off Road X4 Suspension – MorRyde AllTrek CRE4000, HD Shackle Kit
*KYB World Class Shock Absorbers
*Heavy Duty 6 Lug 5200 LB Axles w/ Off-Road Brake System (All Models)
*16″ GoodYear Endurance 235 E Range 10 Ply Radial Tires
*Roto-Torqued “Outdoors Tough” Cabinetry (All Cabinets)
*Radius-Crowned Full Walk-On Roof
*Exterior Grade Tongue & Groove Plywood Sub-Floor
*Marine Grade Plywood Roof Decking
*Full Extension 100 lb Metal Drawer Guides
*Cummins Onan 3.6K On-Board LP Generator
*No Boundaries Off-Grid – Solar Package / Controller
*100 Gallons Fresh Water Capacity (All Models)
*80 Lbs of Propane Capacity (All Models)
*50 Gallons Grey Water Capacity (21RWS, 23BCS, 25DVS)
*80 Gallons Grey Water Capacity (24KRS, 28DBS)
*Progressive Dynamics (4) Stage Converter w/ Built In Charge Wizard – Lithium Compatible
*Off Grid Battery Rack (Capacity: 4 Batteries)
*No Boundaries Off-Grid Solar Ready Roof Port for up to 510 watts
*Energy Saving LED Interior & Exterior Lights
*MorRyde Sliding Cargo Tray in Front Compartment
*Sportsmen’s Rack (Axe, Shovel, Fishing Poles, etc)
*Mountain Storage System (2″ Receiver Hitch & Toy-Lok)
*Quick Access Home Defense Bed Safe
*High Pressure Exterior Spray Washer

*For full list of standard features please consult your local dealership or download a brochure HERE

Floor Length – 22′ Full Featured Dry Weight – 7180

Titanium Series

Optional Premium Package

*Ground Control TT Auto Leveling System
*Lamilux HD 4000 High Gloss Silver Fiberglass w/ Frameless Windows
*Frameless Window Entry Door w/ Privacy Black-Out Roll Shade
*Brushed Aluminum Grab Bar Handle
*15K Coleman A/C / Back-up Lights
*Remote Camping Pkg (Controls Awning, Slide-Out, Exterior Light)
*Raised Panel Knotty Alder Cabinet Doors
*Hardwood Window Valances w/ Privacy Black-Out Roll Shades
*Hardwood Slide-Out Fascia (Slide-Out Models)
*Wireless Rear Observation Camera
*Side Turn Camera System (Driver, Passenger)
*Slide-Topper Awnings (Slide-Out Models)
*LG Solid Surface Tops
(Galley, Lavy, Entertainment Center, & Bed Nightstands)
*Mountain Lodge Inspired Kitchen Package
*Stainless Steel Sunken Range, Microwave, & Range Hood
*Upgraded High Rise (Single Lever w/ Pull Out) Kitchen Faucet
*Mountain Inspired Bedroom Package
*Premium Gel Infused Cooling Memory Foam Heartland Mattress
*Plush Mountain Lodge Bedspread w/ Accent Pillows
*Individual Bedroom Reading Lights w/ Underneath Cabinet Lighting
*Bedroom 12V TV w/ DVD (Select Models)
*Mountain Lodge Inspired Bathroom Package
(Shower Head & Toilet Paper Holder)
*Lighted Make-Up Mirror (Select Models), Undermount Metal Sink
